Product Details:
|
| Maximum PV Charge Current: | 80A | Battery Voltage Range: | 40V~58.4V |
|---|---|---|---|
| System Size: | 560*150*1510mm | System Energy: | 10.24kWh |
| Cooling Mode: | Internal Fan | Working Temperature: | -20℃~55℃（Discharge） 0℃~55℃（Charge） |
| Maximum PV Open Circuit Voltage: | 500Vdc | The Range Of PV Working Voltage: | 120V~500Vdc |

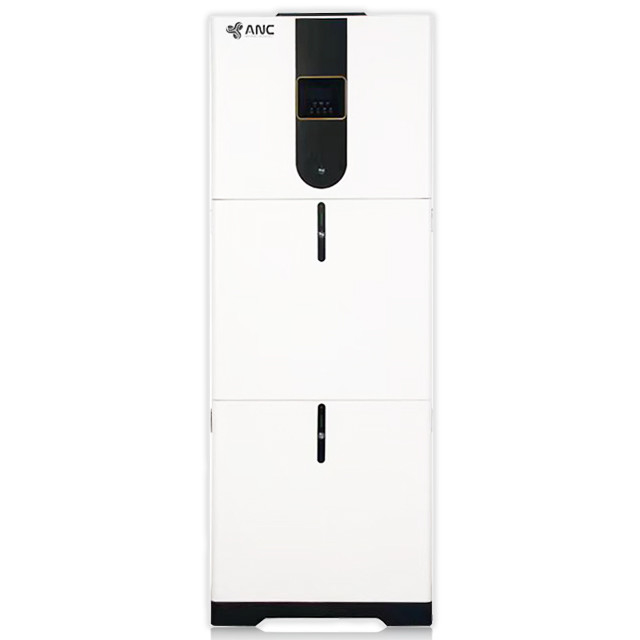

Homeuse Energy Storage Integrated Machine With Inverter
The 51.2V Battery is an advanced lithium ion rechargeable battery, designed for solar panel battery storage. With a system size of 560*150*1510mm, it supports a range of PV working voltage from 120V to 500Vdc, and a maximum PV open circuit voltage of 500Vdc. Its superior Lithium Iron Phosphate (LiFePO4) chemistry makes it an ideal choice for homeuse energy storage systems. This 51.2v lifepo4 battery is reliable and safe, and provides excellent performance in terms of durability, efficiency and longevity.
| Parameter | Value |
|---|---|
| Battery voltage range | 40V~58.4V |
| Cooling mode | Internal Fan |
| Maximum PV input power | 5200W |
| AC rated output power | 5000W |
| Maximum PV charge current | 80A |
| Maximum PV open circuit voltage | 500Vdc |
| MPPT voltage range | 120V~450V |
| Maximum PV input current | 18A |
| The range of PV working voltage | 120V~500Vdc |
| Battery DC protection | 2P Circuit Breaker |
| Solar battery lifepo4 | 51.2V Lifepo4 Battery |
| Lithium ion rechargeable battery | 51.2V Lifepo4 Battery |
ANC 51.2V 10.24kWh golf cart battery is a high-quality hybrid battery from Shangrao Jiangxi, CN which is certified by IEC62619, UL1973,UN38.3,ROHS. It is suitable for homeuse Energy Storage System, and features an internal fan for cooling mode. The battery has a weight of 135kg±5kg, with a maximum PV charge current of 80A, and a maximum PV input current of 18A. ANC 51.2V 10.24kWh lifepo4 battery is an ideal choice for golf cart battery, 51.2v lifepo4 battery, and hybrid battery, and the minimum order quantity is 1 SET with a negotiable price. The supply ability is 10000 sets/month, and the package is wooden packing.
Technical Support and Service for 51.2V Battery:
A1: The brand name of this product is ANC.
A2: The model number of this product is 51.2V 10.24kWh.
A3: This product is from Shangrao Jiangxi, CN.
A4: This product has obtained certification of IEC62619, UL1973,UN38.3,ROHS.
A5: The minimum order quantity for this product is 1 SET.
